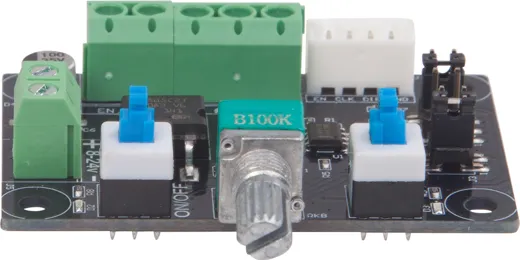

MKS OSC stepper motor driving controller/ pulse generating module
CHF 10.20 incl. VAT
Available immediately
MKS OSC v1 the module can deliver a PWM or pulse signal in three frequency bands. You can drive it from 8 to 24VDC with a maximum load of 4A.
It can:
- Control signal: PWM/Pulse
- Frequency range: High 5.4k-160kHz
- Frequency range: Medium 540-16.6khz
- Frequency range: Low - 80-2.4khz
- Motor rotation direction: clockwise/counterclockwise
- Working voltage: 8 – 24V DC
- Max. load: 4A (max)
To operate it you need:
- The module
- External step driver
- Power supply and
- one step motor
| Item no. | 01900361.1 |
| Barcode | 01900361.1 |
| Manufacturer | 3DWare.ch Handelsware |
| Stock | 11 pcs |
| Supplier article number | 3D-MKS OSC |
