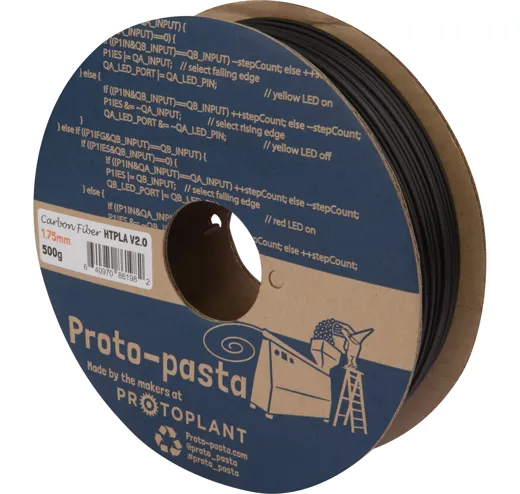

Filament High Performance HTPLA - Carbon Fiber Black 1.75mm
CHF 53.95 incl. VAT
Country of origin:
Properties of HTPLA Fiber from the plastic family PLA
Proto-pasta Carbon Fiber Composite HTPLA is a combination of milled carbon fibers and
high-performance PLA. Resulting 3D-printed prototypes and end-use parts are characterized by
exceptional stability of form and potential use up to 155 C deg when heat treated.
How to anneal:
Tempering objects made with HTPLA is not difficult, but needs to be done properly for best results.
Scale Values (x/y-axis) 101.1%
Scale Values (z-axis) 99%
1. Preheat the oven to 95–110 degrees.
2. When the oven is preheated, place your printed object in the oven.
We recommend placing the object on a flat aluminum sheet or similar.
Set a 10-minute timer
Printability
| Printing temperature mm/s | 200 - 210°C |
|---|---|
| Printing speed | 20 - 40 mm/s |
| Temperature Printbed | 40 - 60°C |
| Level of difficulty | medium |
| Surface | Matt |
| Specific weight | 1.3g/cm3 |
| Heat resistance temperature | 155°C |
| Possible nozzles | copper, hardened Steel, ruby |
| Adhesion types | 3DLac Adhesion spray, PrintaFix, Spring steel plate PEI |
| Special properties | fiber containing |
| Further | Hardened nozzle of at least 0.50mm diameter is recommended |
Variants
| Item no. | M01184011.050-2 |
| Barcode | M01184011.050-2 |
| Manufacturer | Proto Plant |
| Diameter | 1.75mm |
| Plastic type | HTPLA Fiber |
| Color | Black |
| Special properties | fiber containing |
| Level of difficulty | medium |
| Surface | Matt |
| Country of origin | America |
| Filament Packaging | Carton Spool |
| Plastic family | PLA |
