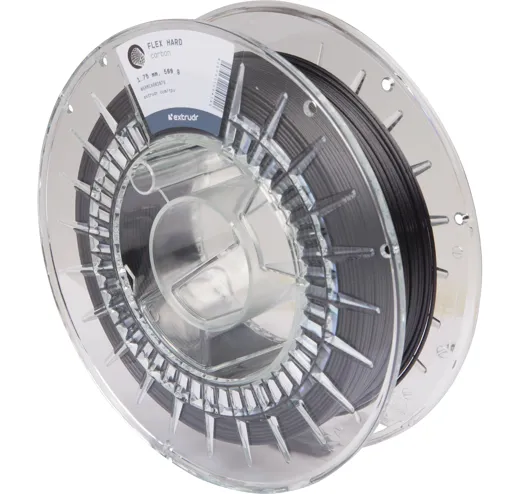

Filament TPU Black Carbon D70 Flex Hard 1.75mm
from CHF 54.95 incl. VAT
Country of origin:
Properties of TPU D70 CF from the plastic family TPU
TPU Flex D58 Carbon combines the 2 worlds of fiber composites and the extremely resistant and durable elastomer based on polycaprolactone polyester. The carbon fibers
reinforce the TPU and makes it more resistant and stiffer. It also creates an outstanding carbon look. The material is also straightforward to process because of its low warping tendency. It was specially developed for industrial applications. The material is optimized for the FFF/FDM process in terms of thermal stability and better flow properties.
Material features:
- Extreme layer bonding
- Carbon optics
- Very low warping
- Excellent chemical resistance
- Free of silicone, softeners and oil
- Free of halogen
- UV-Resistant
- Shore D70
Printability
| Printing temperature mm/s | 230 - 260°C |
|---|---|
| Printing speed | 20 - 40 mm/s |
| Temperature Printbed | 50 - 60°C |
| Level of difficulty | medium |
| Surface | Normal |
| Specific weight | 1.22g/cm3 |
| Heat resistance temperature | 140°C |
| Possible nozzles | hardened Steel, ruby |
| Adhesion types | 3DLac Adhesion spray, BuildTak PEI, PrintaFix, Spring steel plate PEI |
| Special properties | Chemical Resistance, Deformable / flexible, fiber containing, UV / Weather resistant |
| Further | Hardened nozzle of at least 0.50mm diameter is recommended |
Variants
| Item no. | M01156210.050-4 |
| Barcode | M01156210.050-4 |
| Manufacturer | extrudr |
| Diameter | 1.75mm |
| Plastic type | TPU D70 CF |
| Color | Black |
| Special properties | fiber containing, Chemical Resistance, UV / Weather resistant, Deformable / flexible |
| Level of difficulty | medium |
| Surface | Normal |
| Country of origin | European Union, Austria |
| Filament Packaging | Plastic Spool |
| Plastic family | TPU |
