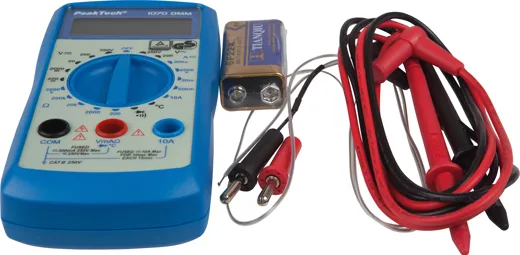

3DWare.ch Handelsware Digital Multimeter 3 ½ digits PEAKTECH 1070

TÜV tested multimeter in pocket format, ideal accessory for 3D printers. For example, when stepper driver to adjust the voltage. Or to measure whether the input or Output voltage is correct.

3½-digit, 12 mm LCD display

Current measurements up to 10A DC

Diode and Continuity Test

Temperature measurement

Accessories: test leads, Type K thermocouple bead probe, battery and manual

Features:

Direct current (DC): 200 (± 0.5%) mV

Direct current (DC): 2/20/200 (± 0.8%) / 250 (± 1.0% ± 2) V

Alternating current (AC): 200/250 (± 1.2%) V

Direct Current (DC): 20 (± 1.2% ± 2) / 200 (± 1.0% ± 2) microamps

Direct Current (DC): 2/20 (± 1.0% ± 2) / 200 (± 1.2% ± 2) mA

Direct Current (DC): 10 (± 2.0% ± 2) A

Resistance (R) 200 (± 1.0% ± 2) Ohm

Resistance (R): 2/20/200 (± 0.8% ± 2) kOhm

Resistance (R): 2 (± 1.2% ± 2) MOhm

Temperature (T): 0 ... + 1000 (± 2% ± 3) ° C

Size 70 x 140 x 30 mm
