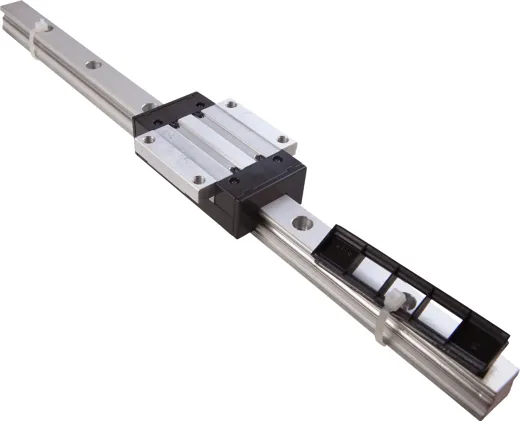

Linear guide rail 20mm / 400mm long with carriage
CHF 121.95 incl. VAT
Available immediately
Aluminum rail guide with ball car was
developed as a supplement to the well-known high-performance profile rails guides to meet the needs of handling and positioning movements as well as lightweight engineering cost effectively.
Advantageously, here their light weight and the effect
good corrosion protection. Stainless steel profiles (stainless steel) are pressed into the aluminum rails and aluminum carriages using a patented process.
The carriages are available in two versions, narrow carriages and flange cars.
The advantages of these guides are compact and lightweight design, higher corrosion resistance than steel guides, insensitive to dirt and the carriages have a long-term lubrication by the production-side Erstbefettung.
Applications:
Axes of any machine such as 3D printer and CNC milling
Speed: 2m / s Temperature range: 0 - 60 degrees
These products are all made in Switzerland
The carriages are available in two versions, narrow carriages and flange cars.
The advantages of these guides are compact and lightweight design, higher corrosion resistance than steel guides, insensitive to dirt and the carriages have a long-term lubrication by the production-side Erstbefettung.
Applications:
Axes of any machine such as 3D printer and CNC milling
Speed: 2m / s Temperature range: 0 - 60 degrees
These products are all made in Switzerland
| Item no. | 01901044.400 |
| Barcode | 01901044.400 |
| Manufacturer | 3DWare.ch Handelsware |
| Stock | 5 pcs |
| Supplier article number | A20-400 + FNS-2000 |
| Thread | M5, M6 |
