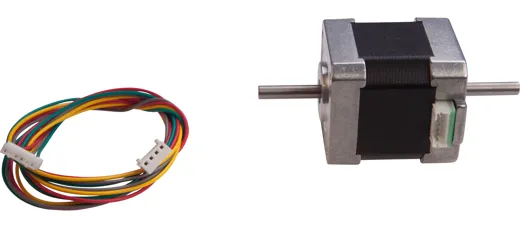

Nema17 stepper motor 1.68A with double shaft
CHF 25.95 incl. VAT
Available immediately
This NEMA17 stepper motor is ideal for your 3D printer.
The motor can be connected directly to the electronics with the cable.
Properties
200 steps per revolution (1.8 degrees / step)
Nominal voltage 12V, or 24V
Nominal current 1.5 A
Phase resistance: 1.7 Ohm ± 10% (20 ° C)
Phase inductance: 4.5 mH ± 20% (1 kHz 1 V rms)
Shaft diameter: 5 mm on both sides (fits perfectly on our GT2 pulleys)
Shaft length: 22mm
Motor depth: 40 mm
Motor width: 42mm
Motor depth: 42mm
The motor can be connected directly to the electronics with the cable.
Properties
| Item no. | 01900502.2 |
| Barcode | 01900502.2 |
| Manufacturer | 3DWare.ch Handelsware |
| Stock | 3 pcs |
| Steps | 1.8 deg/step |
| Diameter | 5mm |
| Voltage | 24v, 12v |
