E3D Titan Aero 1.75mm / 12v Hotend and Extruder Mirrored version 01900205.7

Titan Aero integrates the Titan extruder and V6 HotEnd into one neat little package. All the lightweight performance, reliability and usability of V6 and Titan, along with some benefits all of its own.
Mount two side by side by pairing the standard and mirrored versions, and make the most of your build volume in dual set-ups.

Compact and Rigid

By combining a HotEnd and extruder, Titan Aero is ultra compact. It offers you an extra 25mm of Z-axis build height compared to a V6 and Titan combo. Thanks to its compactness, Titan Aero is also very rigid, allowing it to work with the fastest of printers and cope better with knocks and bumps.

Accurate Extrusion; Great for Flexibles

By having a short, well constrained filament path, Aero is great for flexibles. It minimises places where filament can bend, buckle and jam, giving a better flexible printing experience. The short filament path is also beneficial for regular filaments by improving extrusion responsiveness. This means that extrusion can start and stop more immediately, giving accurate, cleaner prints.

V6 Compatible, All Metal HotEnd

Titan Aero is built on the E3D V6 all metal design, allowing you to reliably print any thermoplastic at temperatures of more than 300°C. It’s also been designed to take standard E3D V6 heatbreaks and nozzles.

Easy to Install, Easy to Use

Aero is mounted using a standard NEMA17 pattern, allowing it to be fitted onto a wide range of printers and making designing mounting solutions straightforward to do. By using Titan’s custom engineering and rigorously tested extrusion mechanism, Aero is highly reliable and retains all of the smart usability features. It’s a breeze to load and unload filament, manually extrude, adjust idler tension, and clean out debris from the hobb. Likewise the use of Titan’s 3:1 gearing ratio allows the use of smaller motors, making for a lighter weight carriage whilst maintaining reliability and pushing power.

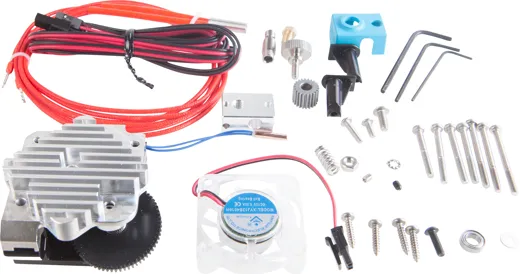

What's in the Box

Machined Parts
Titan Aero Heatsink
V6 Heatbreak
V6 Heater Block
V6 0.4mmm Nozzle

Plastic Parts
Titan Body (prefitted with bearing and threaded insert)
Idler Lever (prefitted with bearing)
Filament Guide

Fixings Mounting Screws for 2mm mounting plate, 3 x M3x30mm,1 x M3x8mm
Mounting Screws for 7mm mounting plate, 3 x M3x35mm,1 x M3x12mm
M3x25mm
Parts for adjusting idler force.
1 x M4 Thumbscrew
1 x M4x10 Button Head Screw
1 x M4 Nut
Idler Spring
4 x Self-tapping Screws
Shake-proof Washer
Bearing
Nylon Spacer
Pinion Gear Grub Screw
1 x M3x10 Button Head Screw
1 x M3 Washer
1 x M3x4 Grub Screw
Hex Wrenches, 1.5mm, 2mm, 2.5mm
Steel Pinion Gear
Acetal Gear with Filament Drive Shaft

Electronics
40x40x10mm Fan
40W Heater Cartridge
Thermistor Sensor Cartridge
2 x Connector Cables (for fan and thermistor)

Other
Sachet of Thermal Paste
100mm Length of 4mm OD PTFE
