E3D Titan Extruder 01900205.0

Titan: A Next Generation Extruder for your 3D printer

Titan brings high performance, lightweight universal extrusion to everyone.

Performance. Power. Push.

With 3:1 gear reduction, precision milled hobbed gearing and E3D engineering, we’ve developed Titan to push with awesome power, while also being incredibly light and compact. The gear ratio means you’re able to use lighter motors as you’ll need less torque for the same filament pushing force - so direct drive systems have a lighter moving carriage, and bowden-style printers become powerful, reliable little beasts when combined with your E3D V6 hotEnd. Titan fits perfectly into E3D’s modular ecosystem, Titan works for all configurations of bowden, direct extrusion, 1.75mm and 3mm. To switch filament diameters only the filament guide needs to be swapped out, and both 3mm and 1.75mm versions are supplied with every Titan. To use Titan as a bowden extruder you just insert a bowden adaptor into the body instead of a hotend. Bowden adaptors for 3mm or 1.75mm are available as a low cost optional extra.
With 16 microsteps with a 1.8 degree motor, the number of steps in the firmware is 418.5

What's in the Box:

5 Injection moulded parts - delrin body, polycarbonate lid, 2 x filament guides, idler lever.

Fixing kit - universal (includes additional set of longer screws for mounting to up to 5mm panel)

Hobb and gear, pre-assembled

Small pinion gear (metal) and grub screw

3x Allen keys

100mm 1.75mm PTFE

Additional Options:

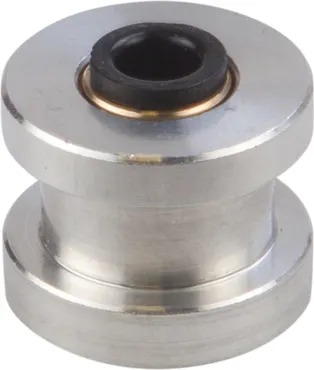

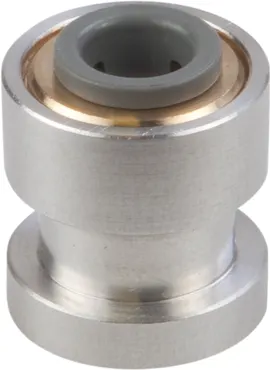

Bowden Adapter 3mm and 1.75mm.

Nema 17

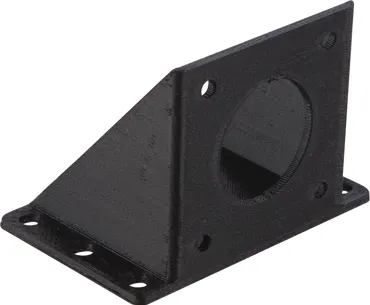

Standard 90° Mounting bracket (2mm depth)
