PanelDue 7i Display for Duet
Duet3D

PanelDue 7i Display for Duet

CHF 147.95 CHF 118.36 incl. VAT

Country of origin:

Available immediately

Quantity (pcs):

PanelDue 7i

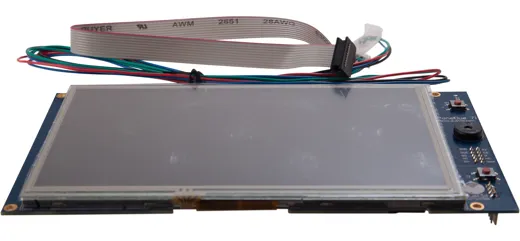

The PanelDue 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD's PCB.

Features:
  • Resolution of 800×480 pixels on a 7 inch LCD.
  • 5V power from host 3D printer controller.
  • 2-wire async serial interface with 3.3V signal level (5V tolerant input).
  • Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable. A 300mm long ribbon cable (maximum recommended length) is supplied.
  • 4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)
  • Item no. 01900348.6
    Barcode 5060662920066
    Manufacturer Duet3D
    Stock 1 pcs
    Supplier article number 5060662920066
    Country of origin Great Britain
    Compatible Printers EVO500, EVO380
