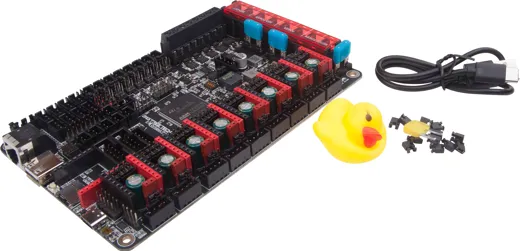

Octopus Pro V1.0(F429)
CHF 72.95 incl. VAT
Available immediately
Main Control Chip
The main control board uses 32-bit ARM-level Cortex-M4 series STM32H723ZE/ STM32F429ZE / STM32F446ZE chip with a frequency of up to 168MHz and the flash is 1MB.
Support 60V Input
Supports up to 8 3D printer motherboards with a maximum 60V stepper motor. The motor drive power supply supports up to 60V input (only for the motor drive power supply).
6 Controllable Fans
Up to 6 controllable fans, two normally open fans, and both support power supply voltage, 12V, 5V options.
Update Firmware: Klipper/Marlin/RRF
Supports firmware update via DFU mode. This is where the firmware is sent to the board directly from the PC and does not require a bootloader however this method is not recommended for novice users as discussed.
Level conversion IC
Supports proximity sensor, jumper optional pull-up resistor, supports more models, supports BL Touch.
| Item no. | 01900359.2 |
| Barcode | 01900359.2 |
| Manufacturer | 3DWare.ch Handelsware |
| Stock | 22 pcs |
| Supplier article number | 1020000315 |
