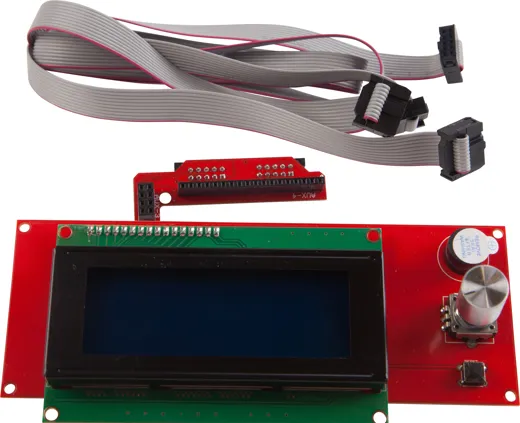

3DWare.ch Handelsware LCD 2004 smart controller display with SD Slot for Ramps 3D-LCD12864

Manage your 3D printer easily without a PC / notebook.. Save the print job to an SD card and insert it in the display

This LCD controller is fully compatible with Ramps1.4.
It has a resolution of 20 characters x 4 lines
If you later change to Rambo you only need a new adapter.

Package List:
1 x SmartController
2 x 60 cm cable
1 x-Ramps 1.4 adapter

Installing the driver / software
• Install the Arduino software on your computer. Here you can find the Arduino Software
• Then you have to download the latest version of U8glib. You can find them here
• Afterwards, go to the Arduino software and open Sketch / Library import / add Library.
Now select the location of the previously downloaded zip file
• Now you have to remove the two // in your Configuration.h file before #define
REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER
• Afterwards, continue the upload with the Arduino software
• Turn off the power to the 3D printer.
After switching on, the display now works and the device can be operated without a computer.
