LGX ™ EXTRUDER

Master all materials specially designed for flexible filament

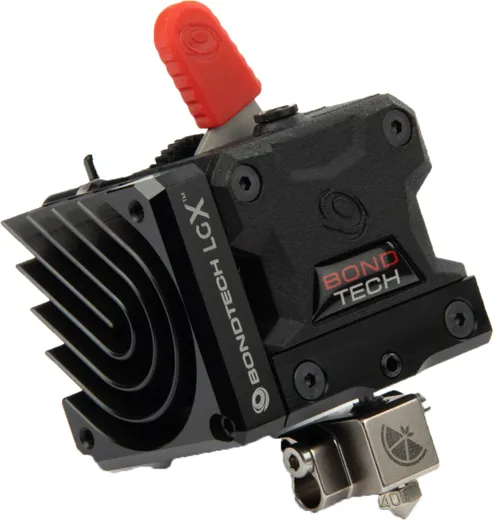

The LGX ™ FF Print Head is a specialized unit that includes the LGX ™ Large Gears eXtruder and the LGX ™ FF Short Filament Path Hotend on Copperhead.

The LGX ™ For Flexible Set contains a reversible heat sink that can be installed on the left or right side of the cooling block. The heat sink also includes the hole pattern for attaching 40 × 40 fans.

Main advantages:

Allows access to all available materials.

Allows you to print flexible and soft materials faster.

It's small and light.

Allows assembly in many different ways.

LGX ™ EXTRUDER technical data:

e-step value: 400 at 16 microsteps; 800 with 32 microsteps.

Drive wheels: hardened steel

Material compatibility: abrasives; Star; semi-flexible; flexible; and soft.

Mounting holes: M3

Mounting pattern: below anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)

Holes on the sides of the LGX ™: 5 mm deep

Holes on the underside of the LGX ™: 12 mm deep

Retraction speed: 35 mm / s

Retraction path (Bowden): ~ 5 mm (0.4 + tube length x 0.15)

Retraction path (direct drive) for rigid materials: 0.4 mm

Retraction path (direct drive) for soft materials: 3 mm

Max. Ambient temperature: 70 ° C

LGX ™ DD net weight: 218.6 g

LGX ™ B net weight: 224 g
